New Motorhomes

Best selling model on the superb new Ford Custom Transit with our popular end kitchen/washroom layout. Also available in Hi Top Long Wheel Base version.The elevating roof model is no longer available.

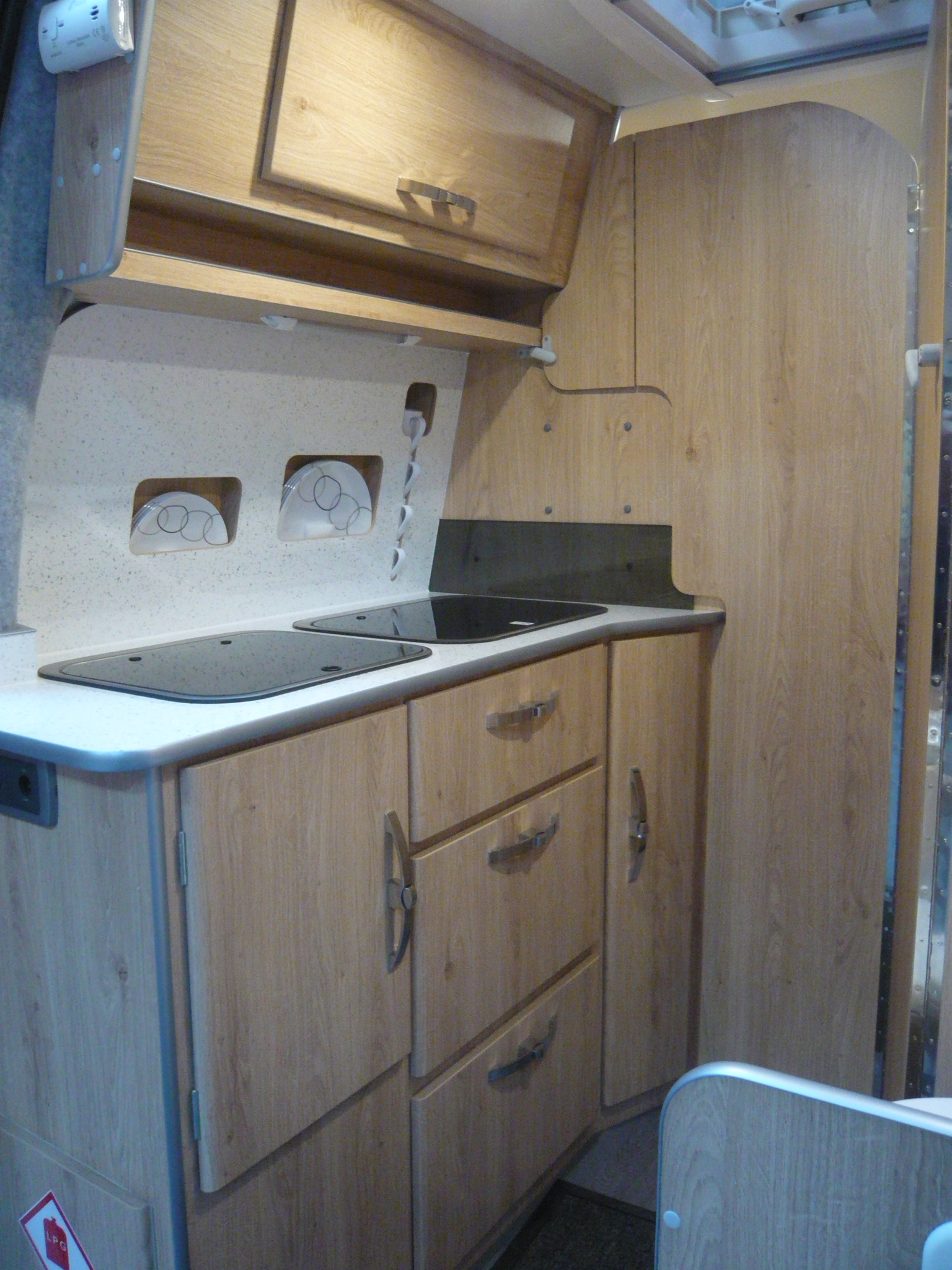

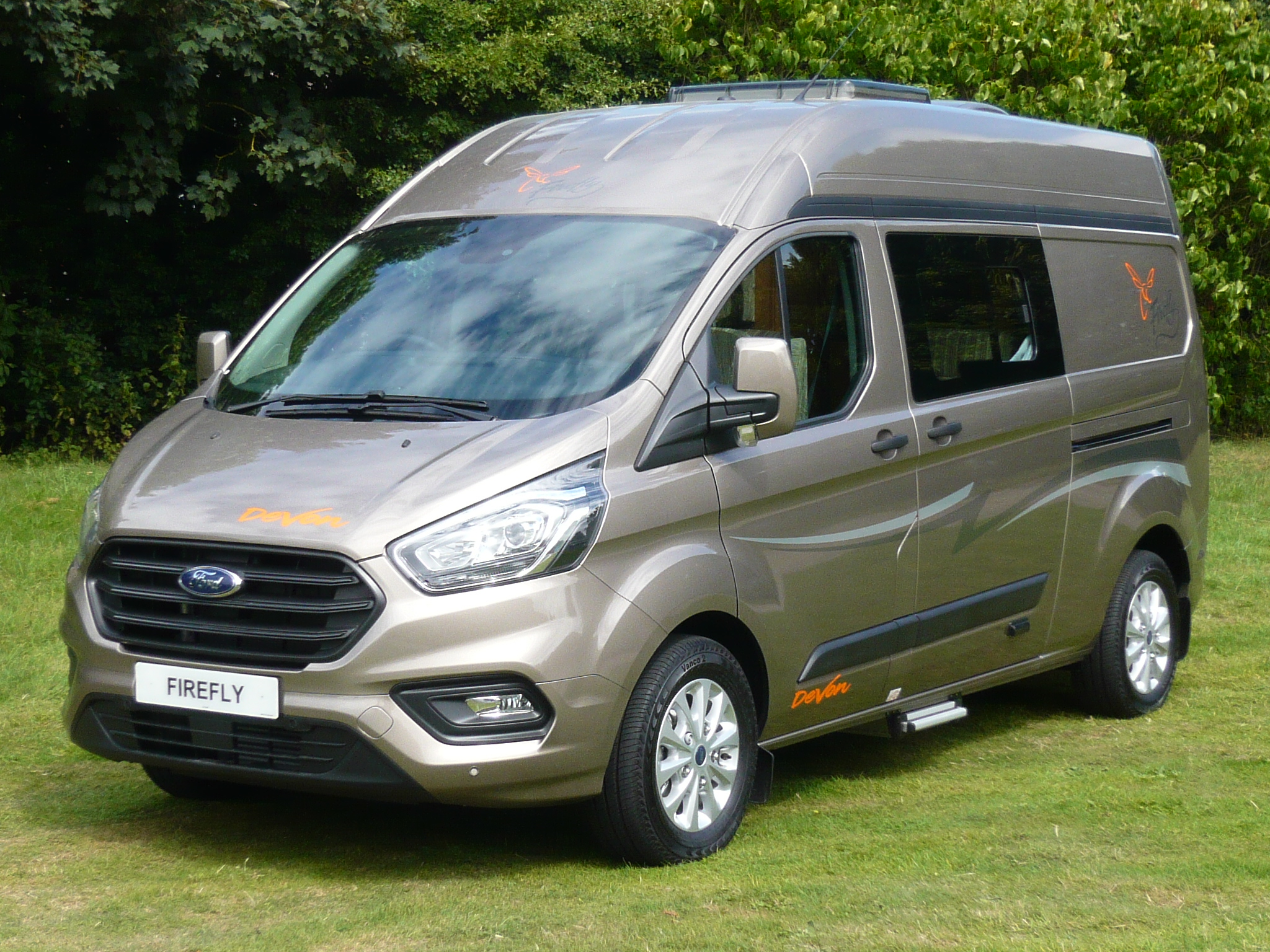

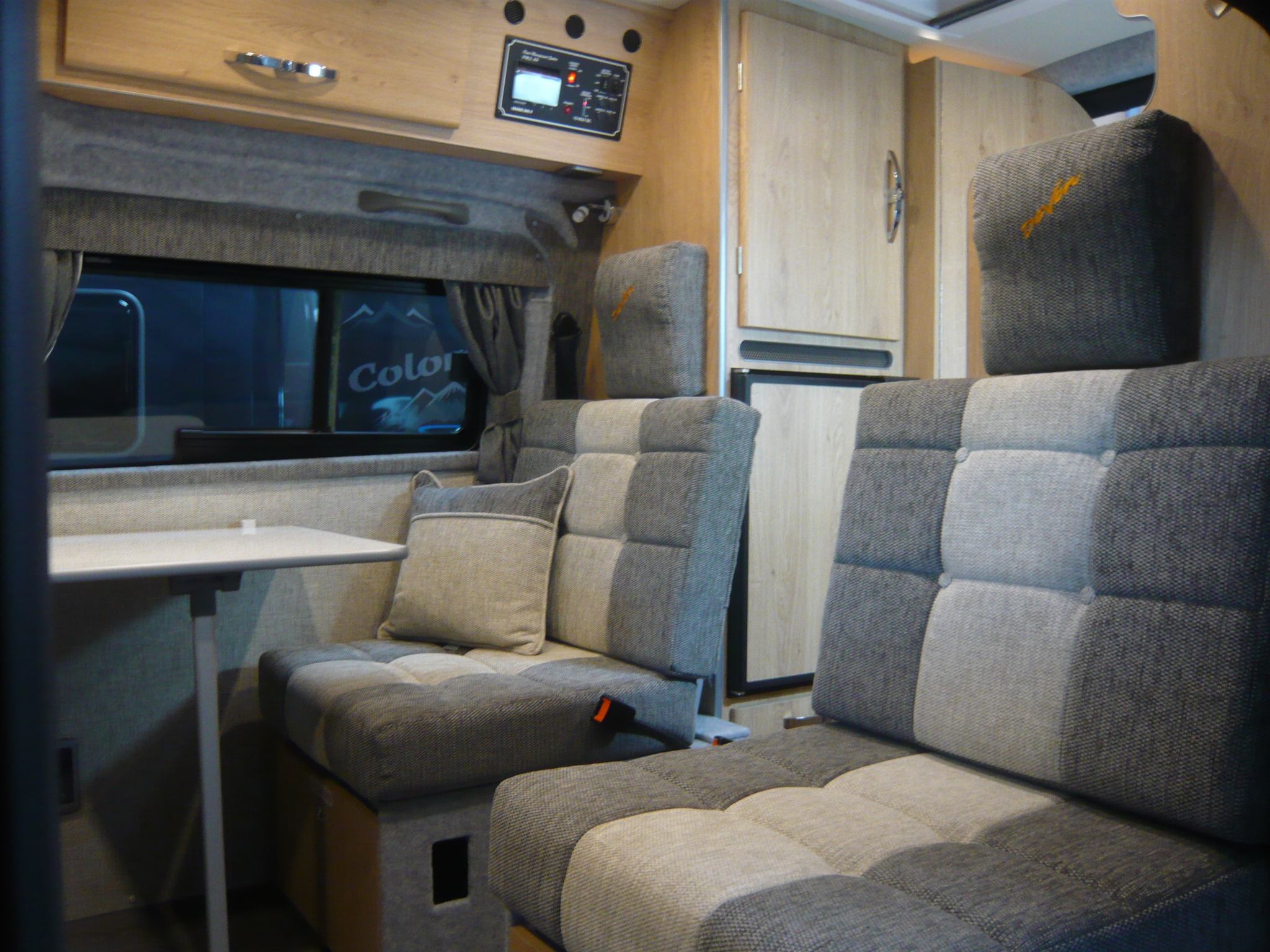

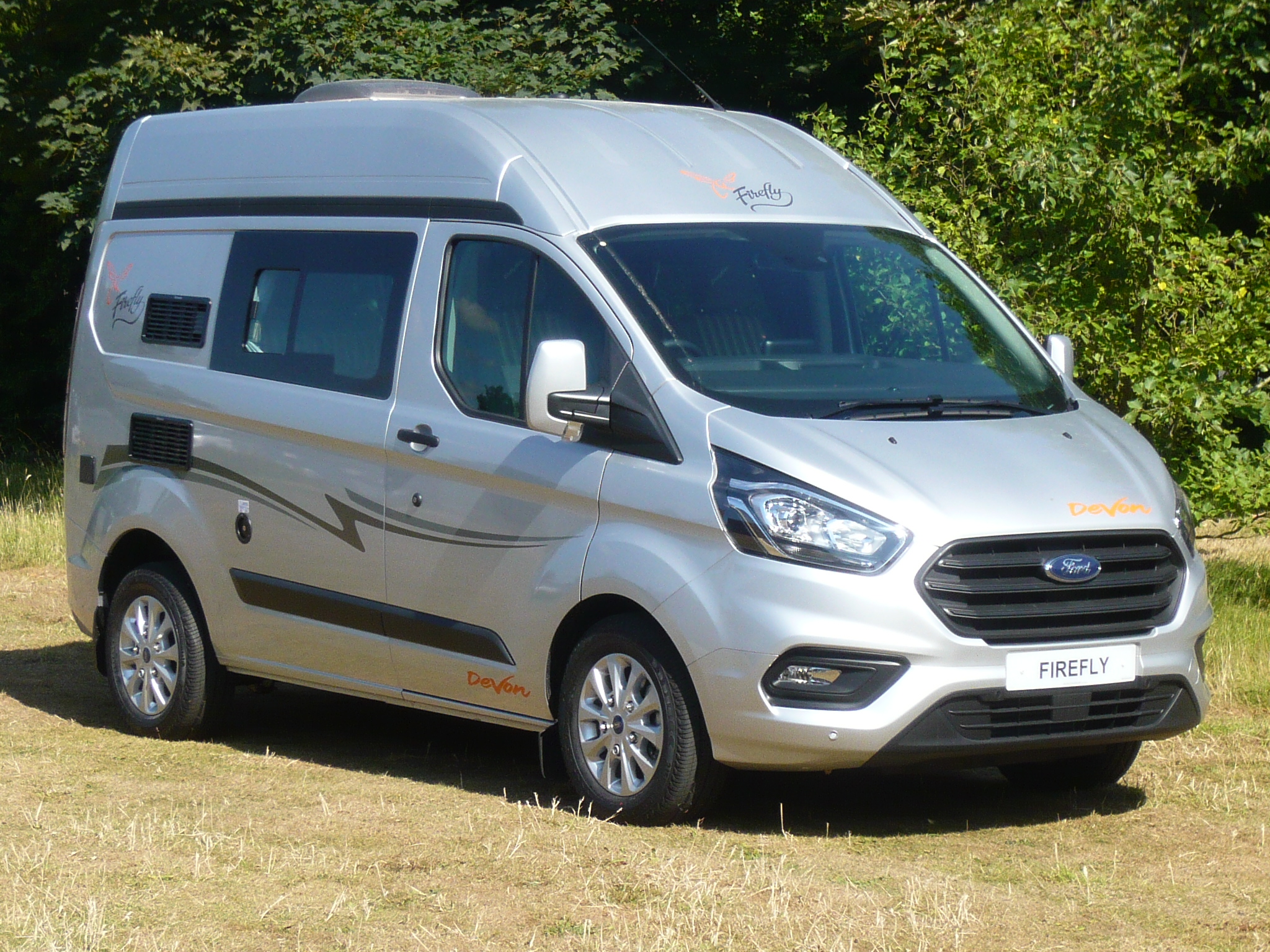

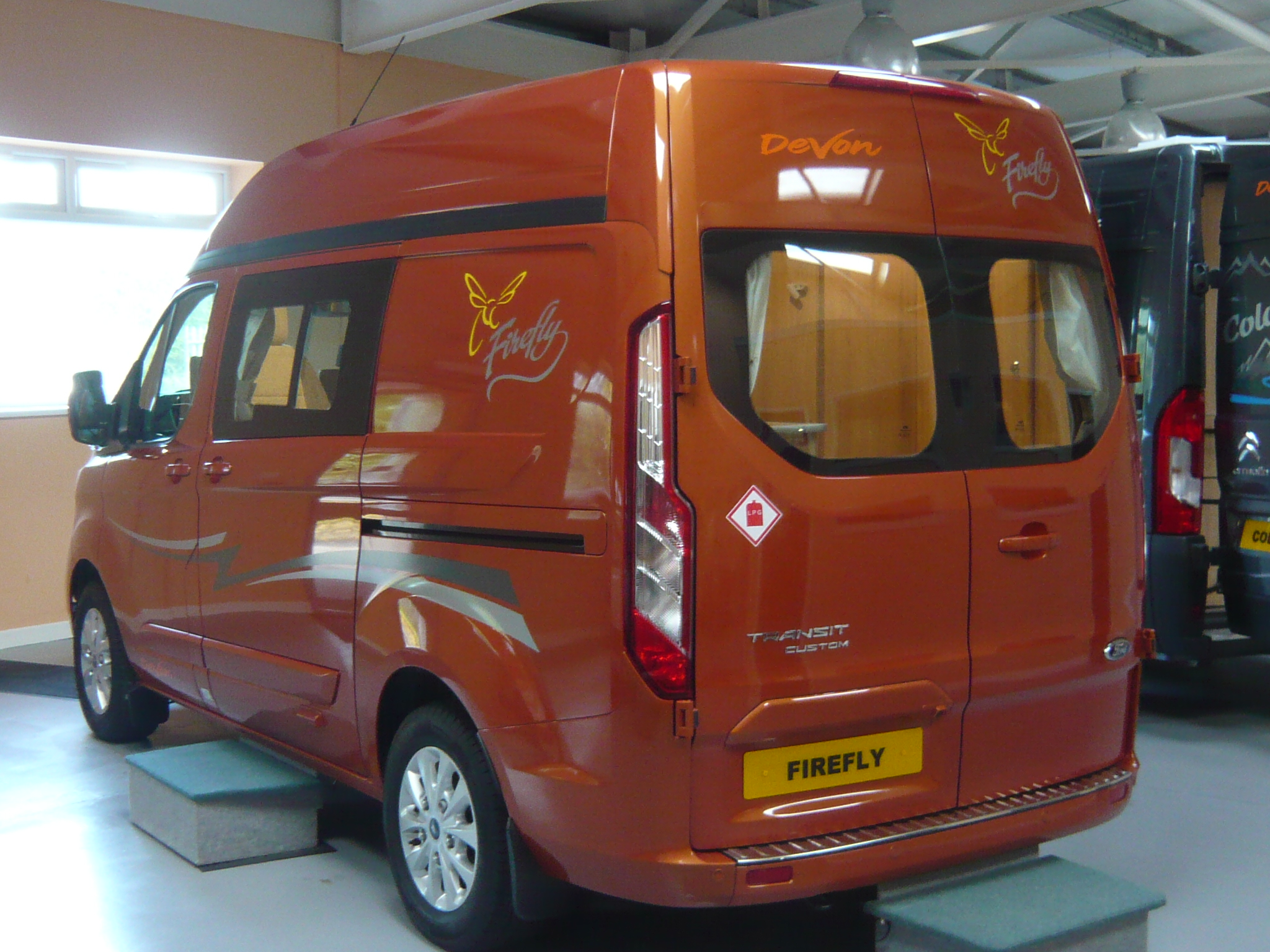

The popular Devon Firefly is based on the Ford Custom Transit Limited with 130 PS engine. It follows our very popular rear kitchen layout with four travelling seats so it can be used as an everyday car. The seats fold down to create two comfortable single beds, in the back is a fully equipped kitchen, with our unique, spacious washroom with folding privacy screen and cassette toilet. The Firefly is extremely well equipped with metallic paintwork, alloy wheels, colour coded bumpers, cab air conditioning, driver and passenger airbags, cruise control, heated front seats, parking sensors, heated windscreen, automatic lights & wipers all come as standard. The Long Wheelbase version adds additional worktop space and pullout storage unit in the kitchen area together with a capacious wardrobe. (N.B Photos show SWB and LWB with various non-standard options)

Base Vehicle Ford Transit Custom
Length SWB 4972mm (16ft 4ins) LWB 5339mm (17ft 6ins)
Height Hi Top 2425mm (7ft 11.5in) Elev. Approx 2080mm (6ft 8.5in)
Gross Vehicle Weight 3000kg
Unladen Weight SWB 2310kg LWB 2472kg
Gross Payload SWB 690kg LWB 528kg
Engine 2.0 TDCi 130bhp
Gearbox 6 speed manual
Automatic Available? Yes
Spare Wheel Yes - Full Size
Berths 2 singles
Belted Seats 4
Front Bed Length 6ft 2in
Front Bed Width 2ft

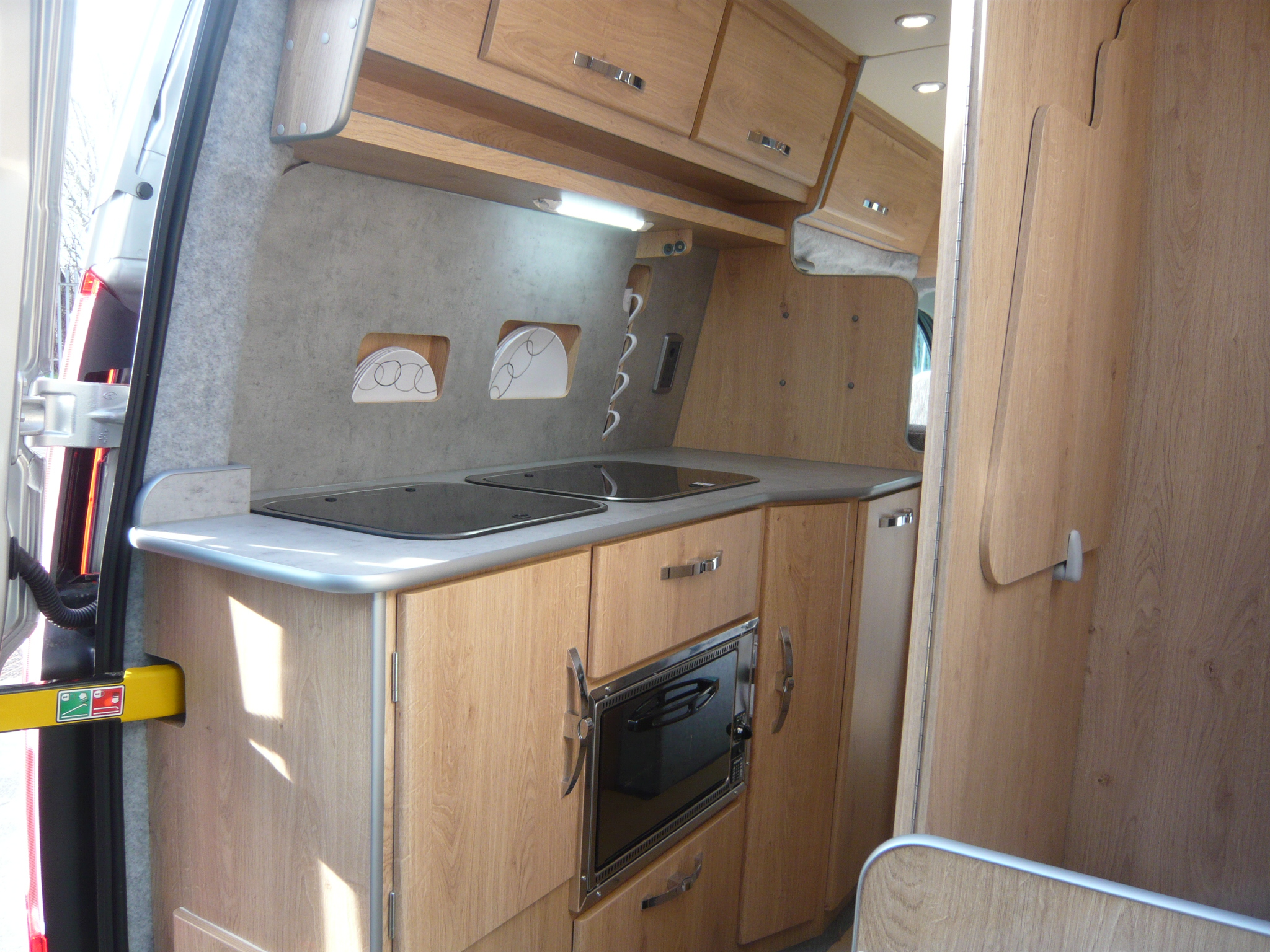

Hob/Sink Separate sink & 2 burner hob, both with glass lids
Fresh Water Tank 32ltr (7gal)
Waste Water Tank 27ltr (6gal)
Air Heater Optional Webasto diesel heater

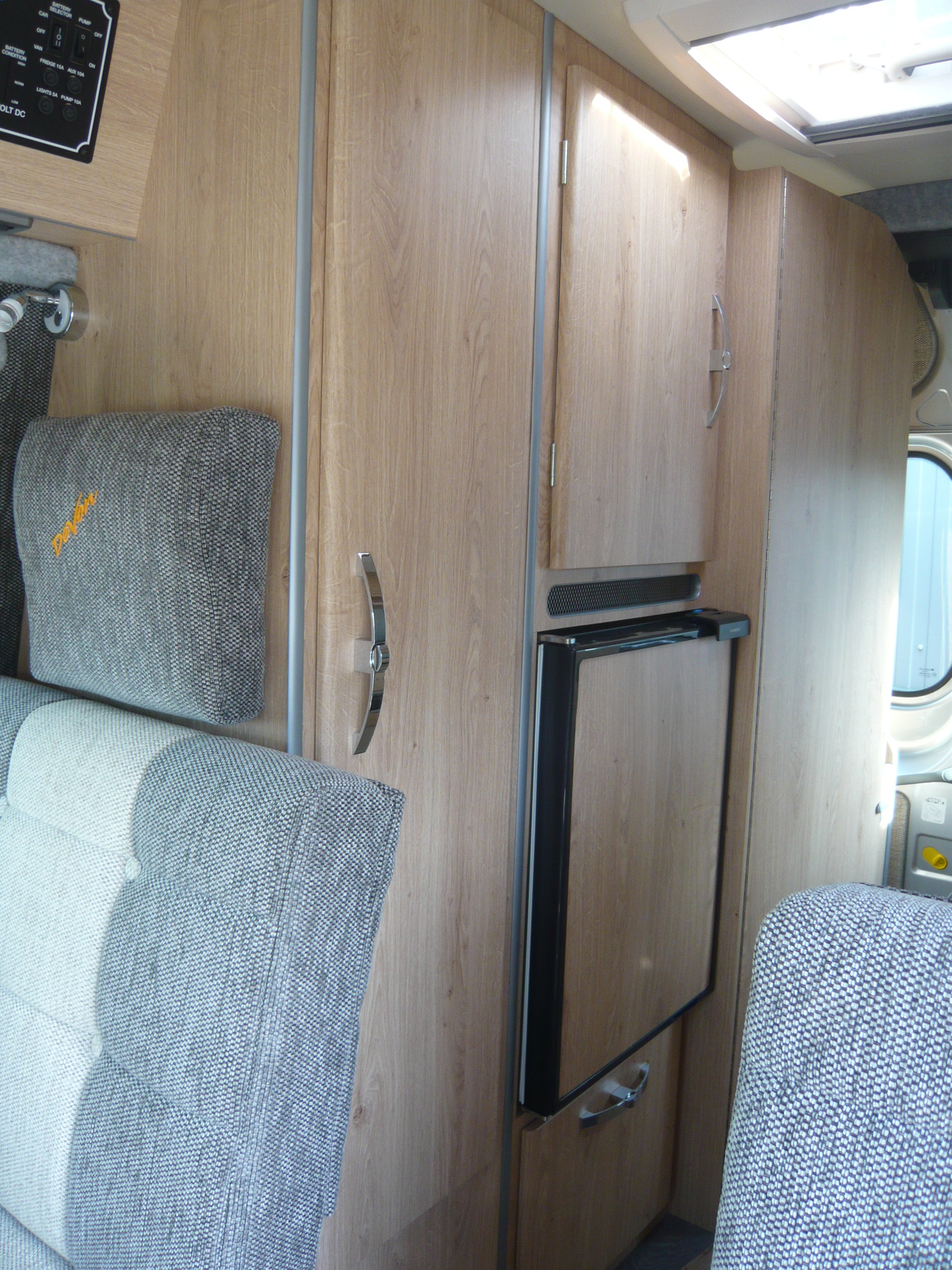

Fridge 80ltr compressor or Dometic RM5310 3 way
Leisure Battery Size 100AH
Gas Cylinders Space for 2 x Calor 3.9kg
12v Sockets 2
230v Sockets 2
Wardrobe Yes

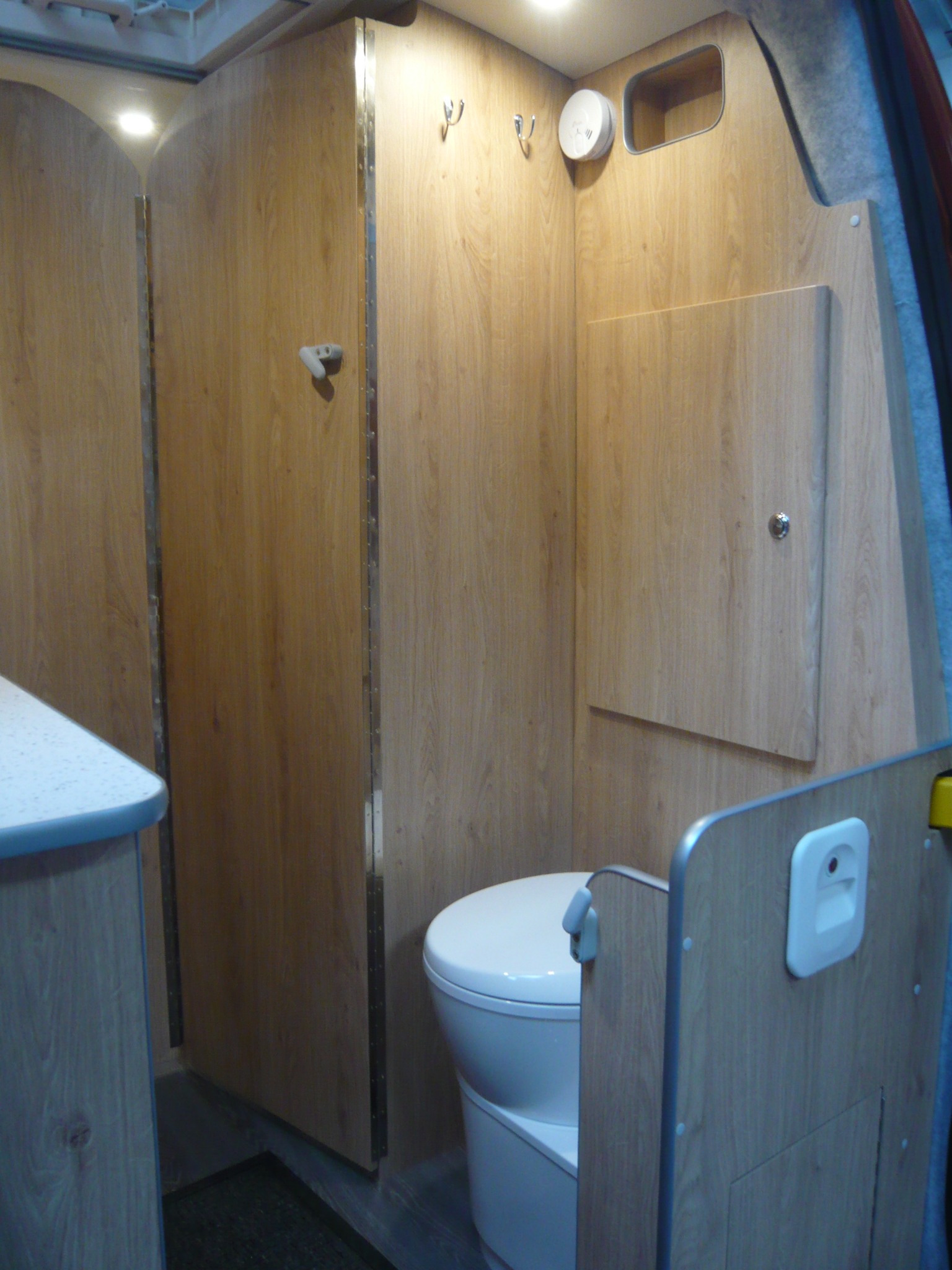

Toilet/Shower Thetford C220 with wheeled cassette
Fire Extinguisher Yes
Width (excluding mirrors) 1986mm (6ft 6in)
Roof Bed No
Oven Optional Smev mini oven and grill

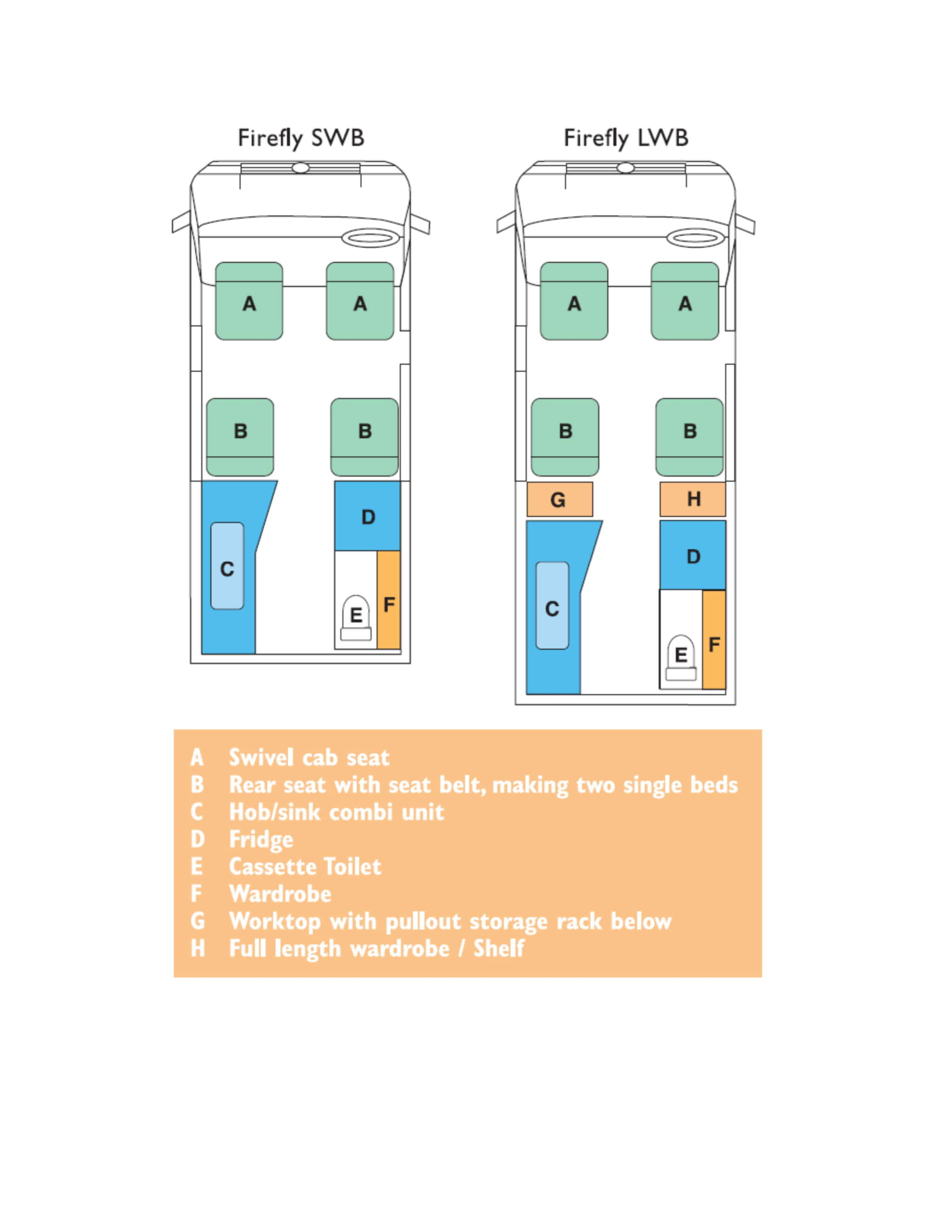

Ford Firefly Layout


Firefly SWB on Custom Transit 300 Limited
130 PS Engine  Hi Top

 Firefly LWB Hi Top version





+ Manufacturer Delivery, VED & No. Plates




Ford Options

Metallic Paint Standard
 Automatic select shift gearbox      £1,860.00

Devon Options

Oven & Grill £492.00
Webasto diesel heater £984.00
Dometic 3 way fridge in place of compressor fridge  £186.00
Electric Step £399.00




Prices shown are on the road and include VAT.  Prices are subject to change without prior notice.

A full range of accessories are available to complement your new Devon Conversions motorhome, please contact Devon Conversions for details.
