Fiat / Peugeot Aztec LWB

Fiat / Peugeot Aztec LWB

New Motorhomes

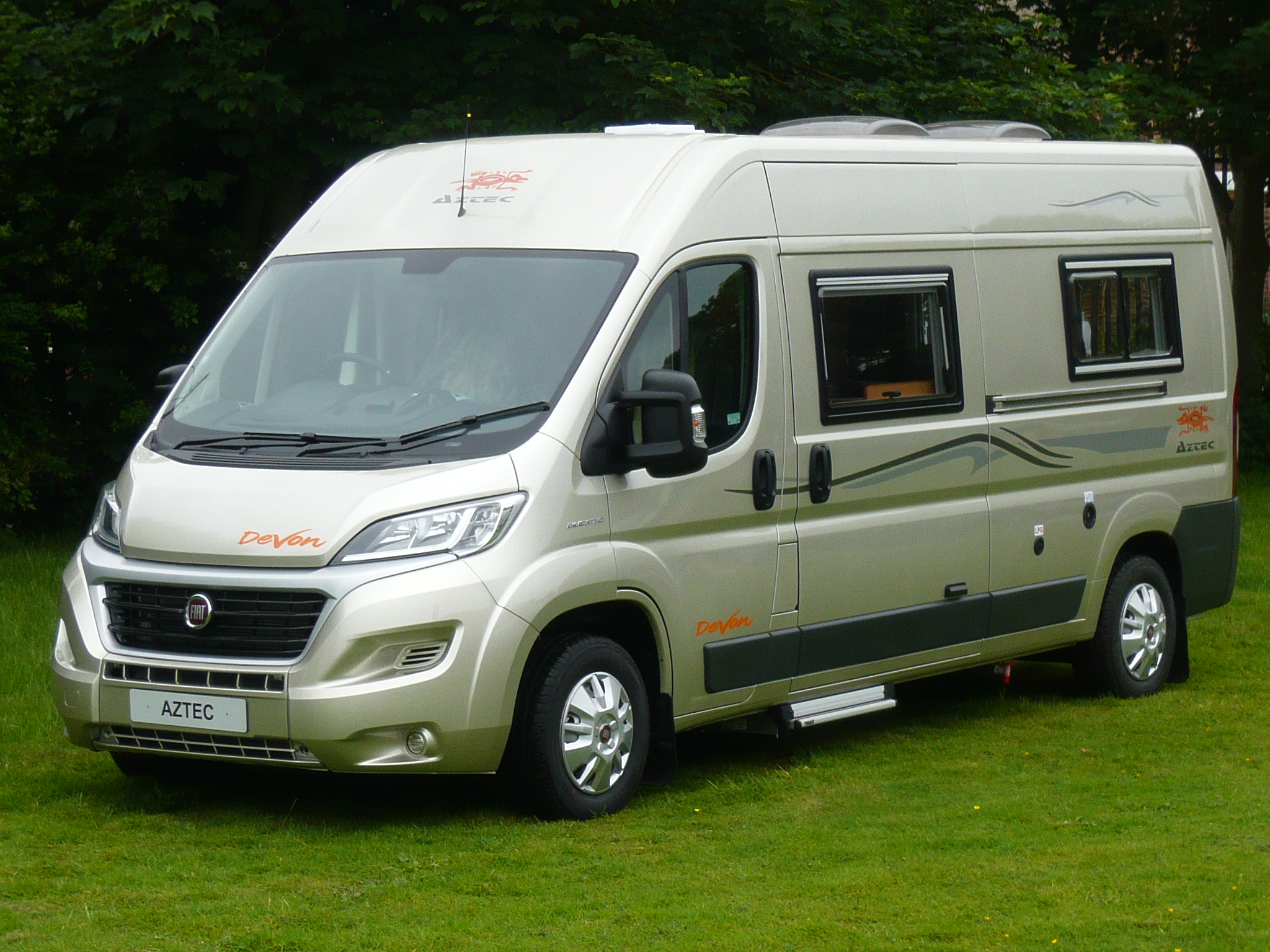

Our award winning Aztec LWB is based on the ever popular Fiat Ducato and is available with automatic transmission. The Aztec can also be built on the Peugeot Boxer or Citroen Relay models.

Space is at a premium in many van conversions but the Aztec LWB reveals just how civilised life on the move can be.

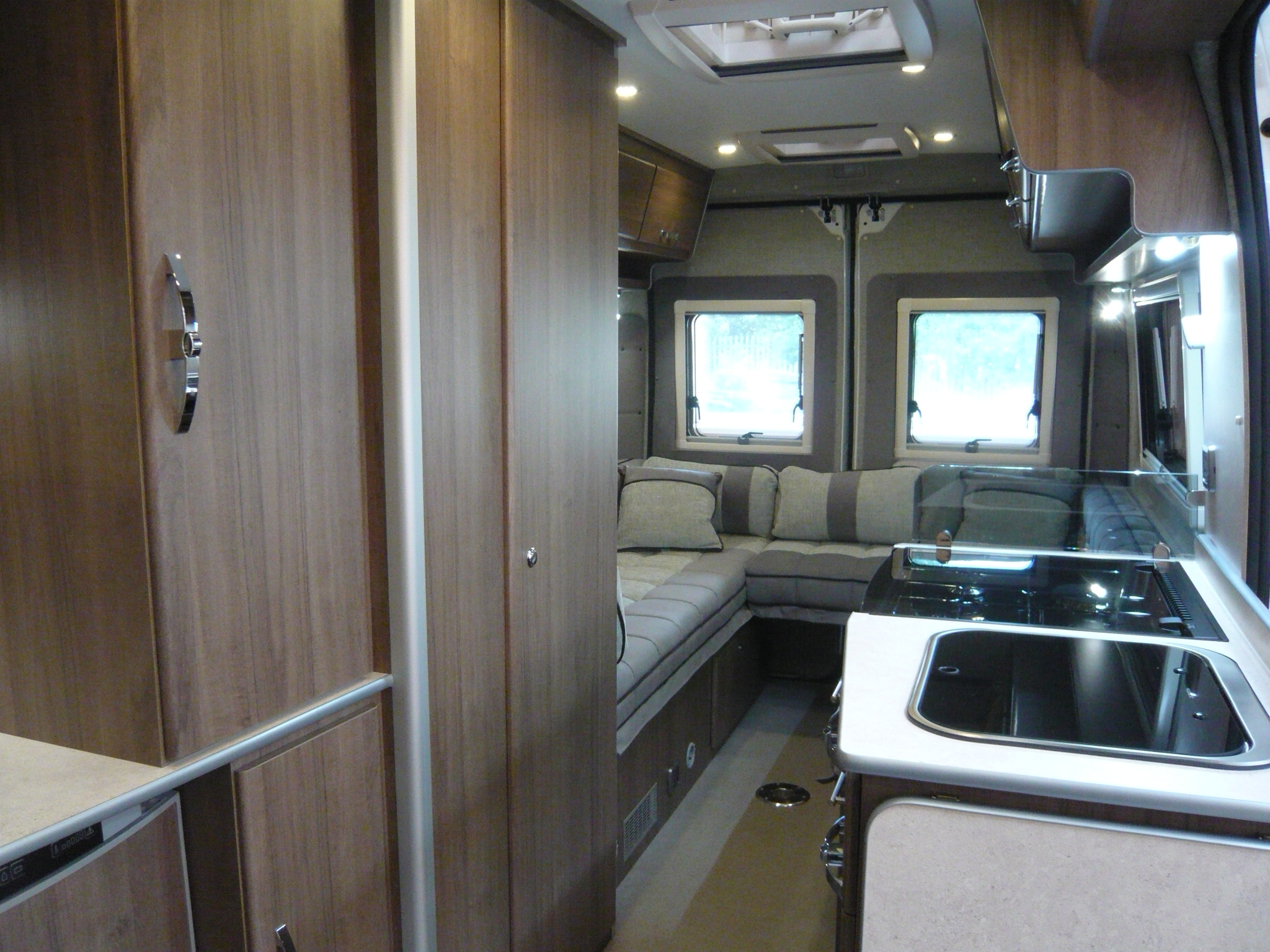

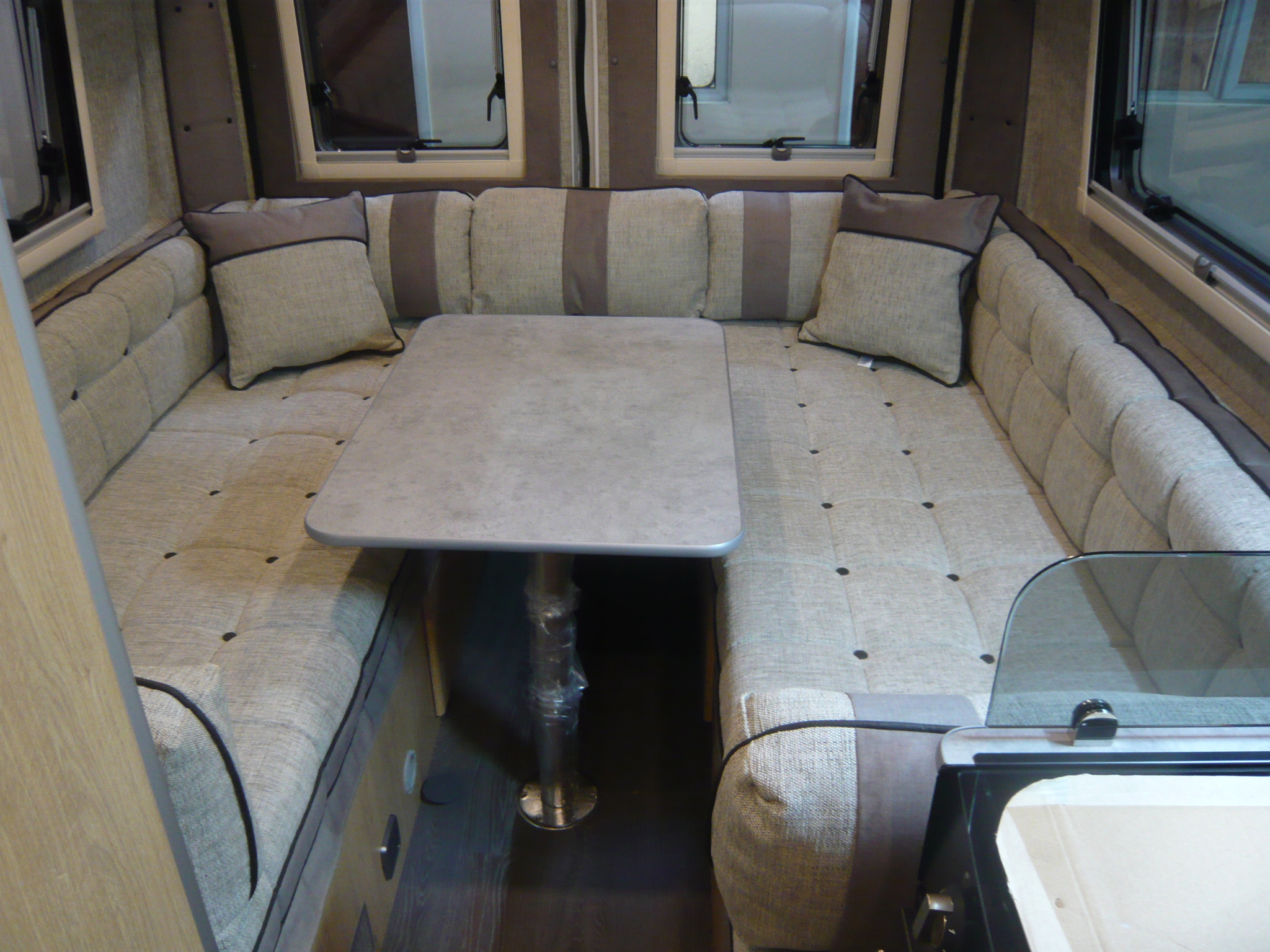

Offered with a choice of body lengths, it has a rear lounge area of generous dimensions that will appeal to buyers who have enjoyed towing a caravan in the past.

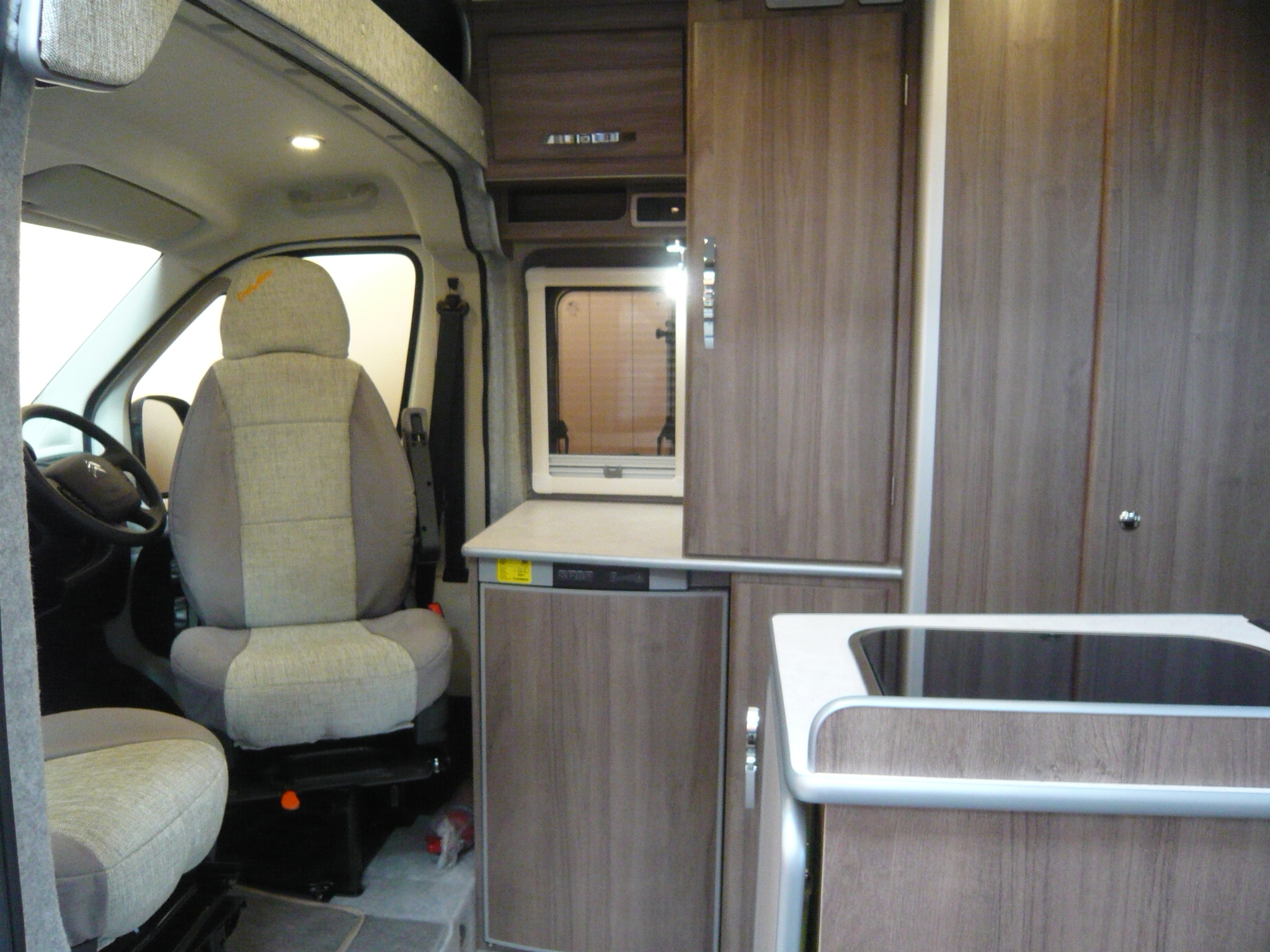

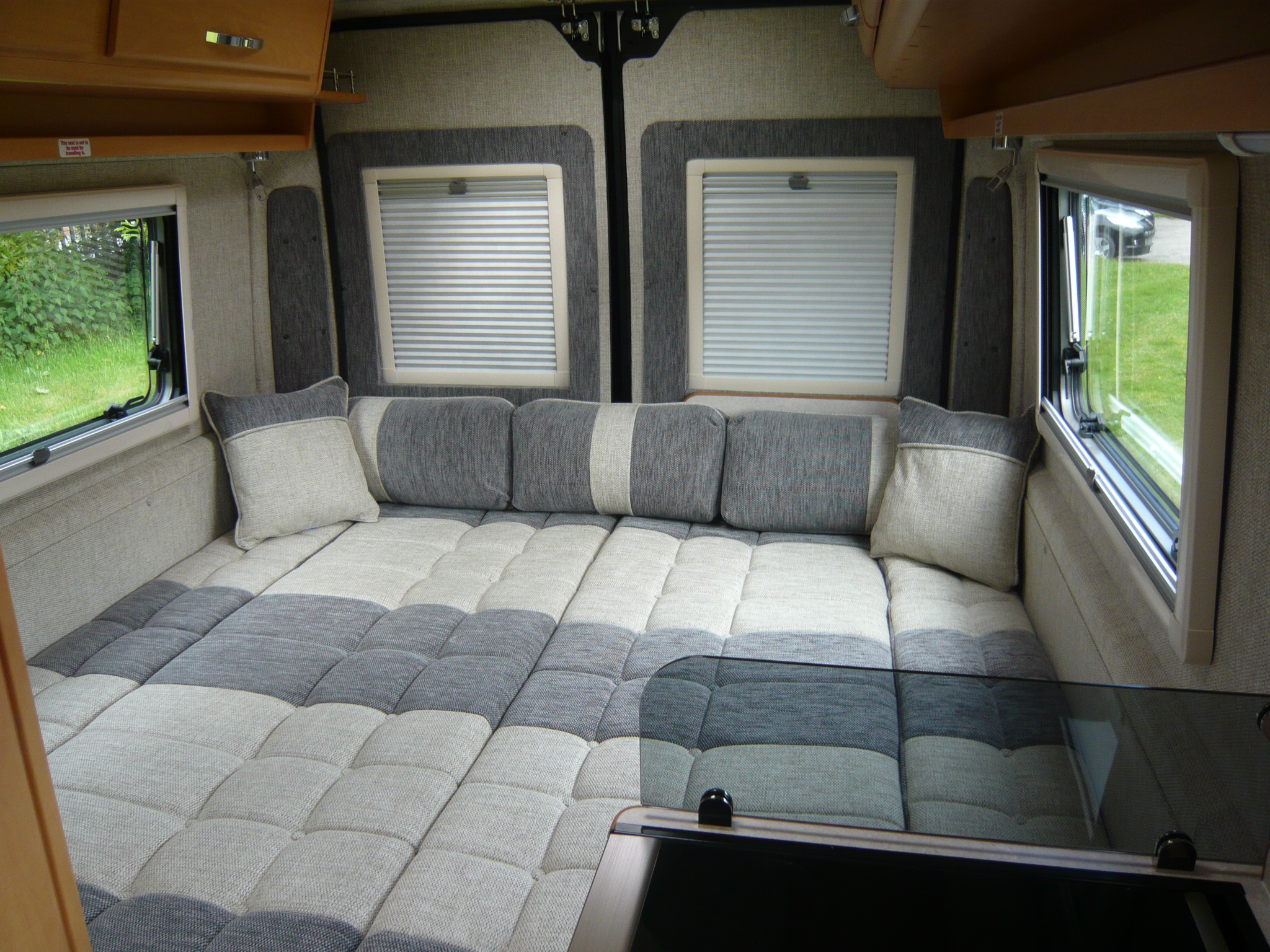

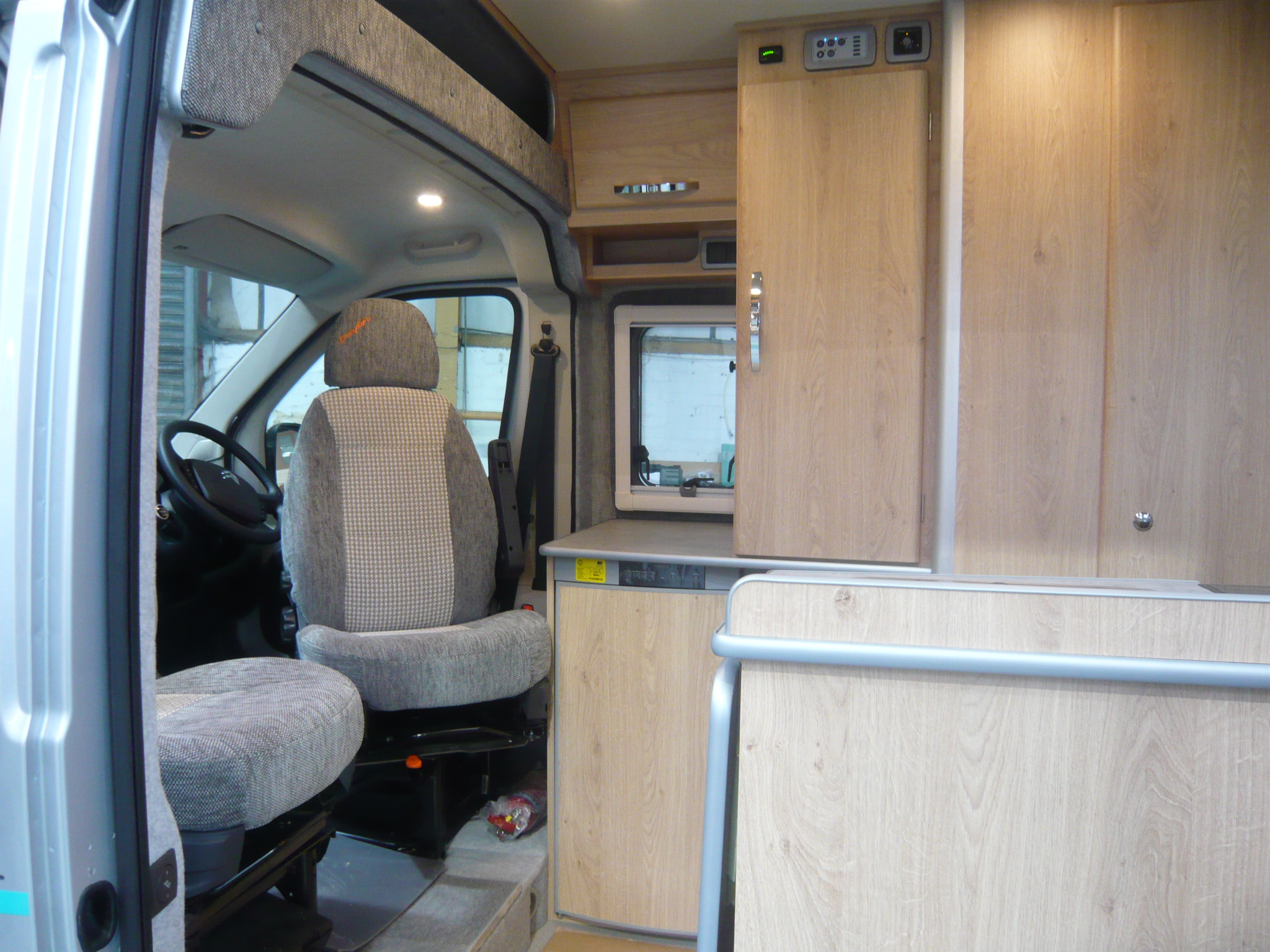

A useful worktop extension above the fridge also enhances the lounging area created when the cab seats are swivelled, in effect giving sitting space with bay windows at each end of the van or enabling the rear bed to be made and left in place when touring as a couple without robbing the van of sitting space.

Base Vehicle Fiat Ducato Long Wheelbase
Length 5998mm (19ft 8in)
Width 2050mm (6ft 9in)
Height 2590mm (8ft 6in)
Gross Vehicle Weight 3500kg
Unladen Weight 2620kg
Gross Payload 880kg
Engine 2.3 Multijet Diesel 140 Fiat or 2.2 Hdi 140 PSA
Gearbox 6 speed manual (9 sp automatic available on Fiat Ducato)
Automatic Available? Yes
Spare Wheel Yes
Berths 2 single or King size double
Belted Seats 2
Fresh Water Tank 66ltr (14.5gal)with gauge
Waste Water Tank 50ltr (11gal) with gauge
Fridge Dometic RM8401 90ltr
Leisure Battery Size 100AH
Gas Cylinders Space for 2 x 3.9 kg Calor Gas (optional 25l tank)
12v Sockets 1
230v Sockets 3
Wardrobe Yes
Overhead Cupboards Yes
Over Cab Storage Yes

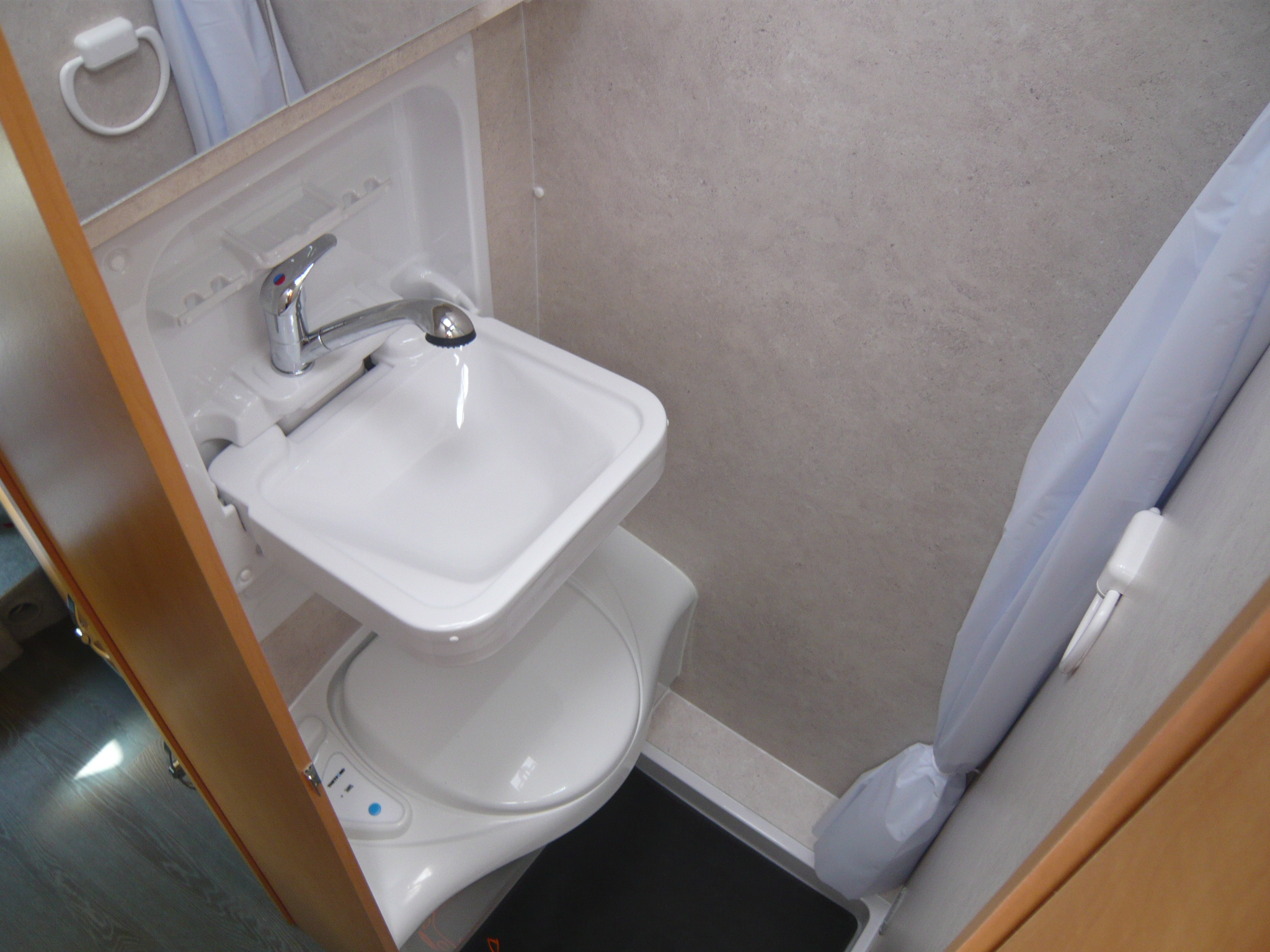

Toilet/Shower Yes, with tip-up handbasin and Thetford C402 cassette
Fire Extinguisher Yes
Under Bed Storage Yes
Kitchen Storage Yes
Double Bed Width 6ft 1.5in
Fly Screens Yes, on side windows and roof vents
Single Bed Width 26.5in

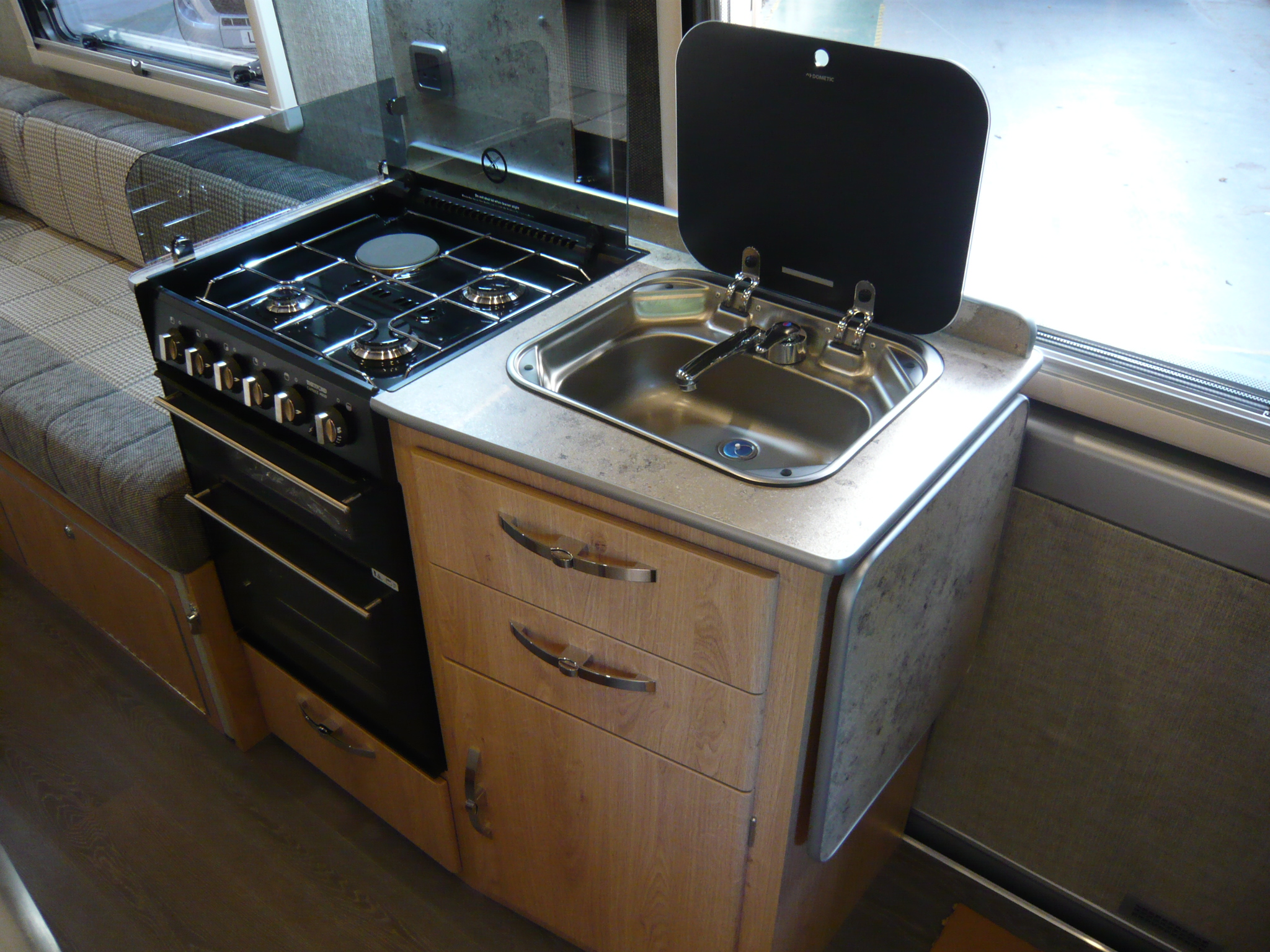

Cooker Smev 401 stainless steel with 4 burner hob oven and grill with electronic ignition
Air and Water Heater Truma Combi gas and 230v electric
Cutlery Drawer Yes
Bed Length 6ft 3in

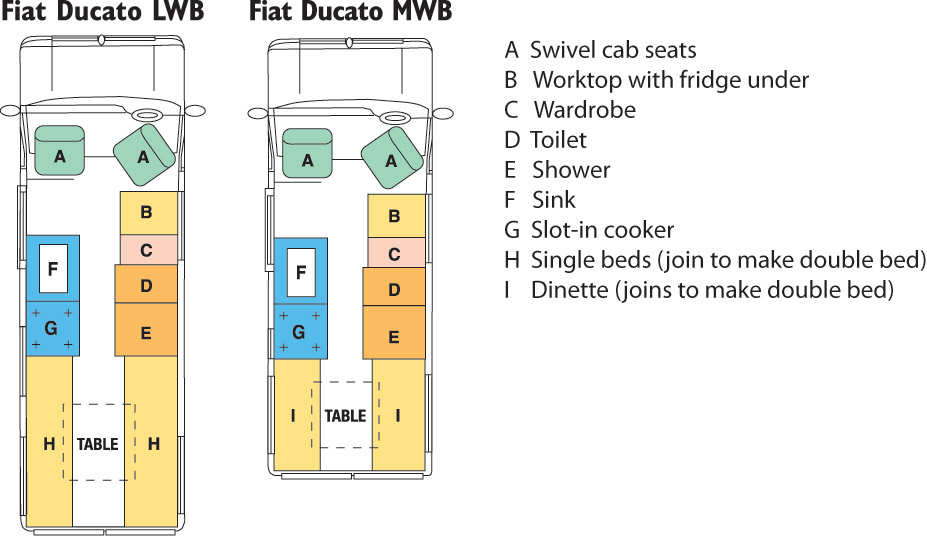

Fiat / Peugeot Aztec LWB Layout


Aztec MWB 140BHP Euro 6.2             TBA
Aztec LWB 140BHP Euro 6.2            TBA
Aztec XL 140BHP Euro 6.2            TBA
+  Manufacturer Delivery, VED & No. Plates           TBA



Vehicle Options

Designer Pack -N/A


Designer Pack Plus - N/A










Metallic Paint £840.00
160BHP EURO 6.2 engine n/a
Pastel paint  £840.00
9 speed Automatic Transmission available on Fiat engines n/a

Other options available as per Manufacturer Price List

Awning - anthracite / white / titanium £996.00
Electric step £492.00
TV/DVD with directional aerial £546.00
Directional aerial & sockets only £294.00
2 bike rack £486.00
Awning Light £168.00
Solar panel £597.00
Thatcham Category 1 alarm £426.00
25 litre underfloor gas tank standard
Remis cab blinds in place of silver screens £870.00
J Rail £96.00

Other factory fitted options are available, please refer to the Fiat price list.

Prices shown are on the road and include VAT. Prices are subject to change without prior notice.

A full range of accessories are available to complement your new Devon Conversions motorhome. Please contact us for details and prices of accessories.
